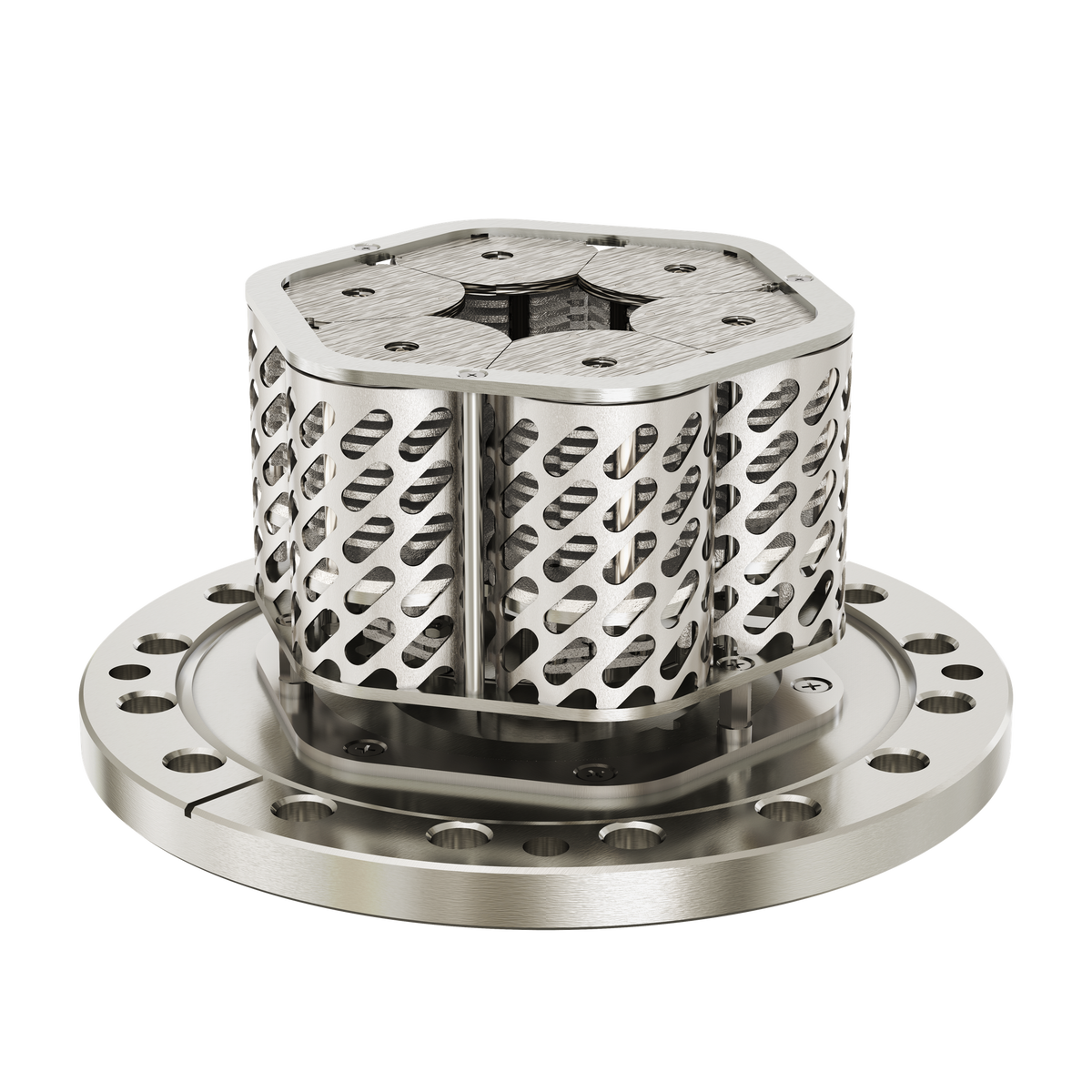

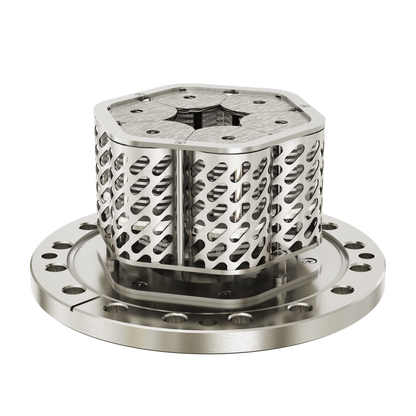

• HyTan NEG pump, 600 series NEG module, Ø98 mm body with 6 CFF flange

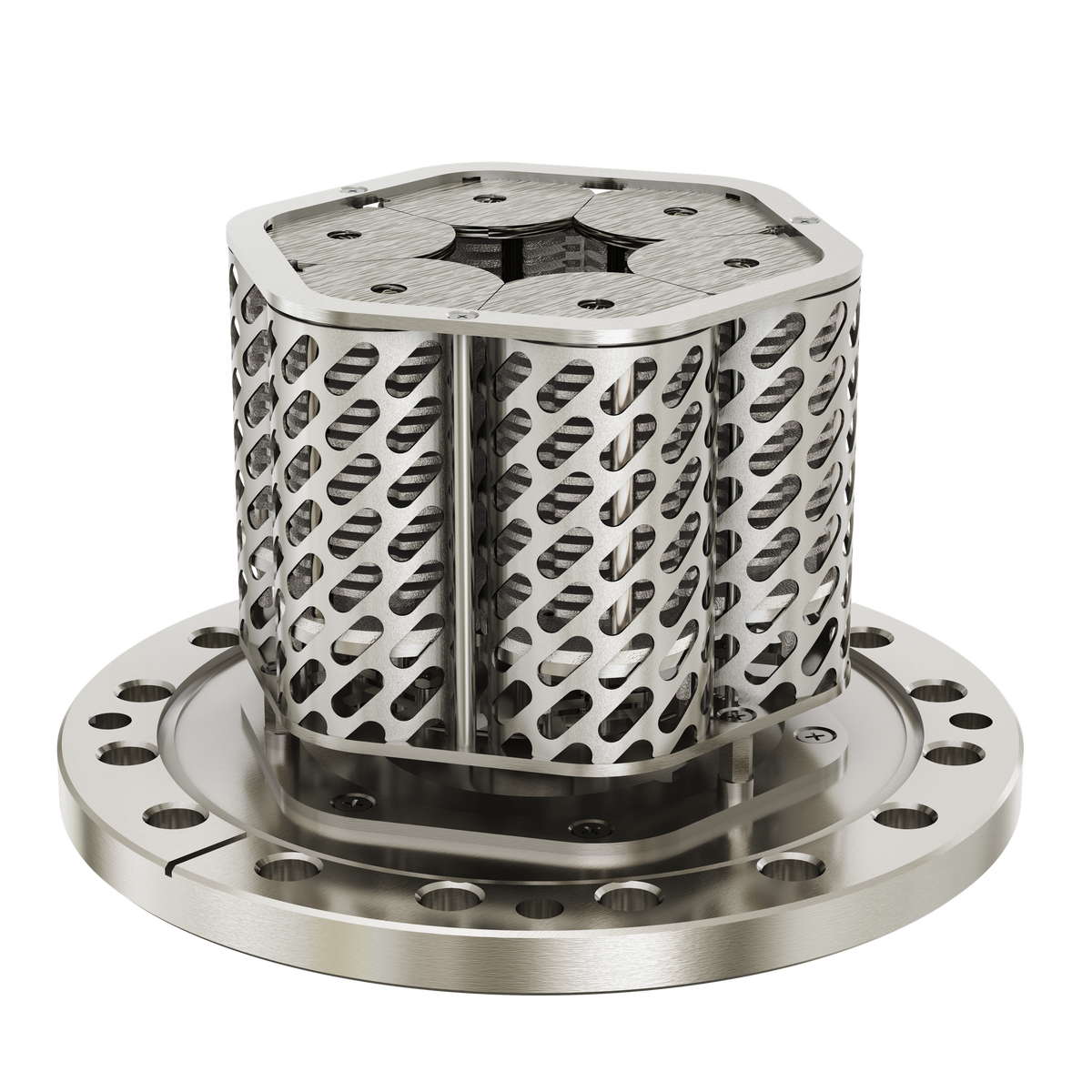

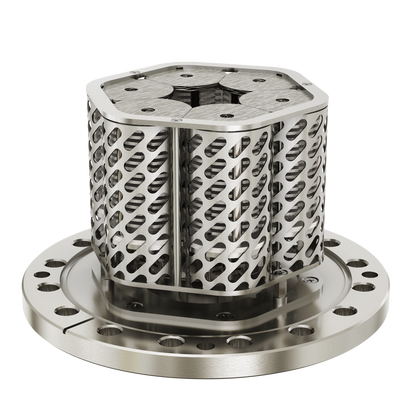

  • HyTan NEG pump, 1000 series NEG module, Ø98 mm body with 6 CFF flange

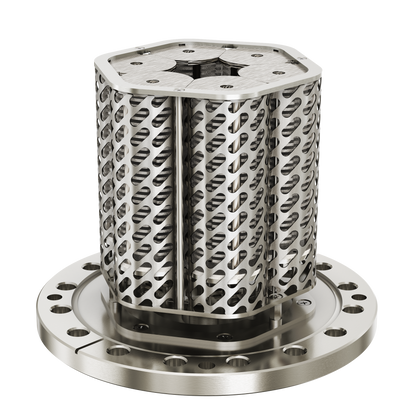

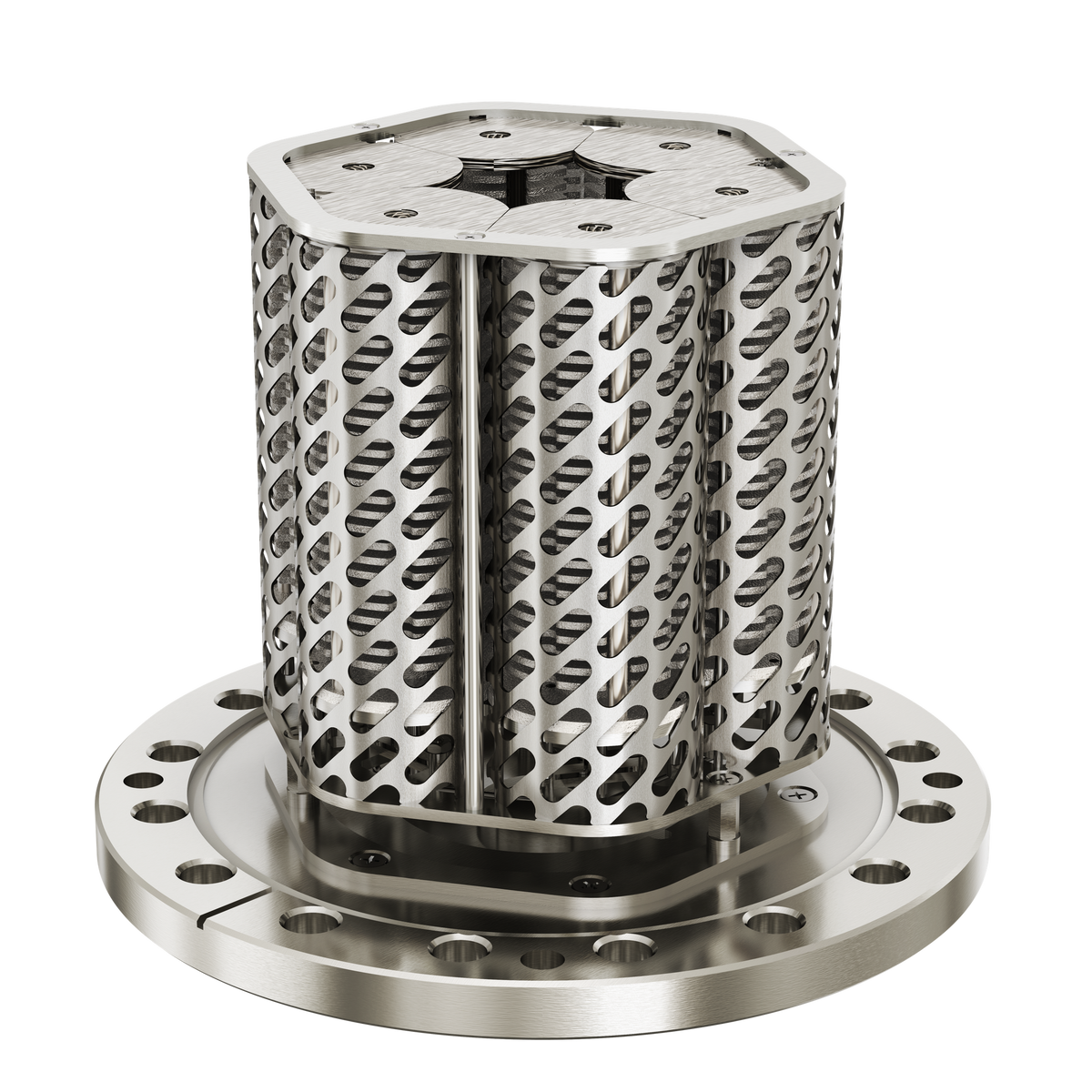

  • HyTan NEG pump, 1500 series NEG module, Ø98 mm body with 6 CFF flange

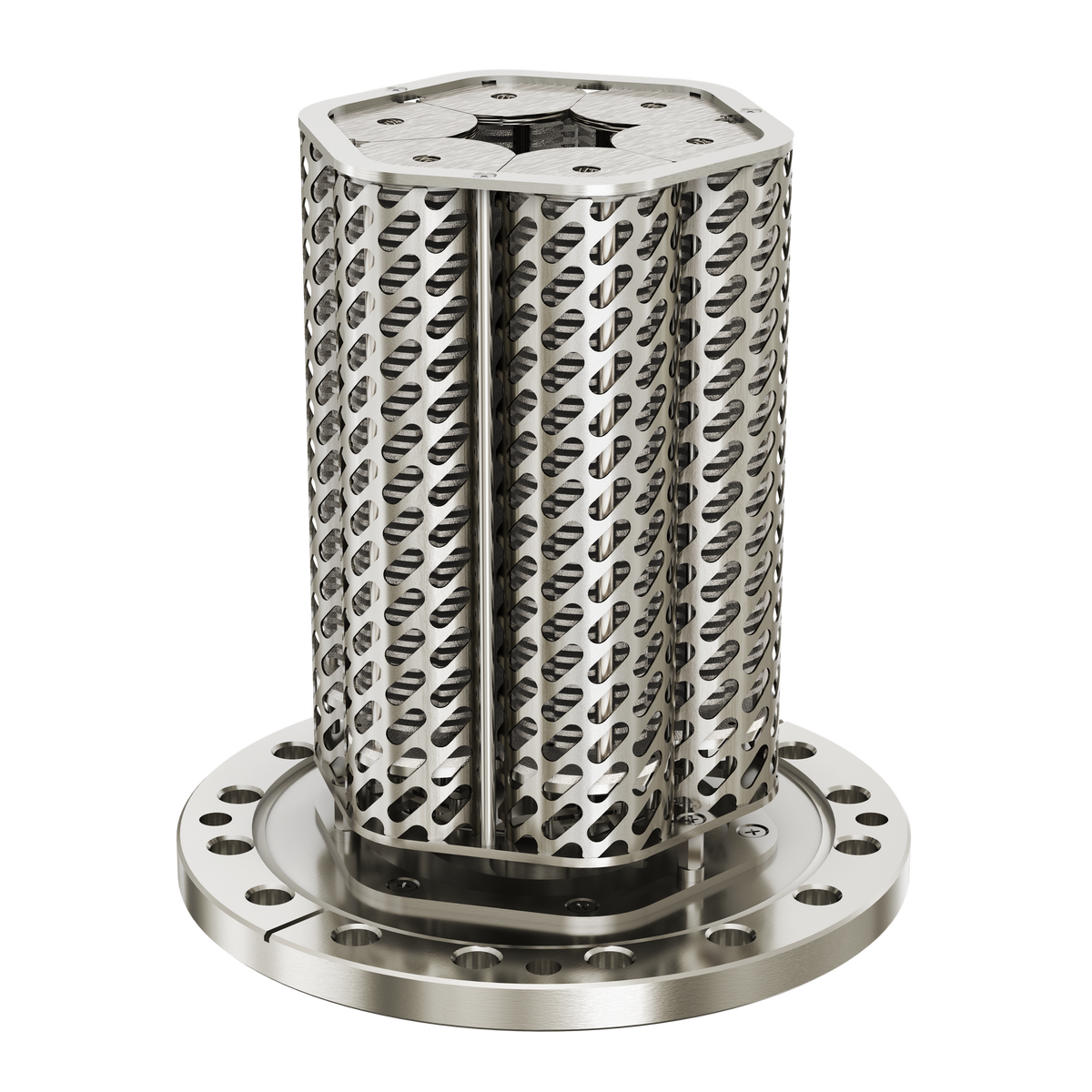

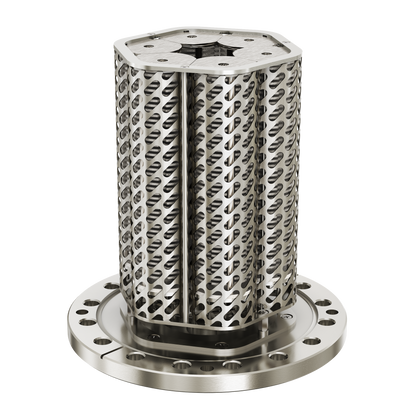

  • HyTan NEG pump, 2000 series NEG module, Ø98 mm body with 6 CFF flange
1 4

HyTan NEG Pumps (Ø98 mm)

HyTan NEG Pumps (Ø98 mm)

Specifications

Part number 600HSN6NN
Gamma part number 600HS-N-6-N-N

Configure Your Product

 Request a Quote
  • Customers outside of USA, are required to order via the request form
View full details

Technical specifications

600 Series

    600HS 600HP
Pumping speed1 (l/s) H2 725
CO 325
N2 200
Sorption capacity2 (Torr l) H2 1700 2800
CO 1 2
N2 0.4 2
Getter mass (g) 170 280
Max power3 (W) 250
Max current (A) 7.5
Flange options DN 100 CF (6"), DN 160 CF (8")
Pump weight, DN 100 CF (kg) 1.7 1.8
Pump weight, DN 160 CF (kg) 2.7 2.8
Max bake temperature4 (°C) 450

1000 Series

    1000HS 1000HP
Pumping speed1 (l/s) H2 1000
CO 450
N2 275
Sorption capacity2 (Torr l) H2 2700 4500
CO 1.3 5.0
N2 0.6 3.8
Getter mass (g) 270 450
Max power3 (W) 350
Max current (A) 7.5
Flange options DN 100 CF (6"), DN 160 CF (8")
Pump weight, DN 100 CF (kg) 1.9 2.0
Pump weight, DN 160 CF (kg) 2.9 3.0
Max bake temperature4 (°C) 450

1500 Series

    1500HS 1500HP
Pumping speed1 (l/s) H2 1500
CO 700
N2 425
Sorption capacity2 (Torr l) H2 4500 7500
CO 1.8 10
N2 0.7 14
Getter mass (g) 450 750
Max power3 (W) 450
Max current (A) 6.5
Flange options DN 100 CF (6"), DN 160 CF (8")
Pump weight, DN 100 CF (kg) 2.1 2.4
Pump weight, DN 160 CF (kg) 3.1 3.4
Max bake temperature4 (°C) 450

2000 Series

    2000HS 2000HP
Pumping speed1 (l/s) H2 2000
CO 1050
N2 650
Sorption capacity2 (Torr l) H2 7200 12000
CO 2.2 13
N2 0.8 15
Getter mass (g) 600 1200
Max power3 (W) 600
Max current (A) 6
Flange options DN 100 CF (6"), DN 160 CF (8")
Pump weight, DN 100 CF (kg) 2.5 3.0
Pump weight, DN 160 CF (kg) 3.5 4.0
Max bake temperature4 (°C) 450

1 Initial speed measured at 25°C without conductance restrictions.
2 H2: embrittlement limit (10 Torr l/g); CO / N2: single-run capacity.
3 Not including transmission losses.
4 Without power cables connected. When connected, refer to the max operating temperature of the power cables and connector.
