DIGITEL SPC-ION
DIGITEL SPC-ION
Specifications
| Part number | SPCIPS24 |
|---|---|
| Gamma part number | SPCI-P-S-24 |
Configure Your Product
- Customers outside of USA, are required to order via the request form
Technical specifications
| Input power | |
| Voltage | 100 – 240 VAC or 24 VDC |
| Frequency | 50/60 Hz |
| Output power | |
| Independent outputs | 1 |
| Operation voltage | ± 3 – 7 kV (100 V steps) |
| Current (maximum) | 40 mA |
| Watts (maximum) | 50 |
| Resolution | 1 nA |
| High voltage connections | One channel 10 kV SHV or Fischer |
| Display | |

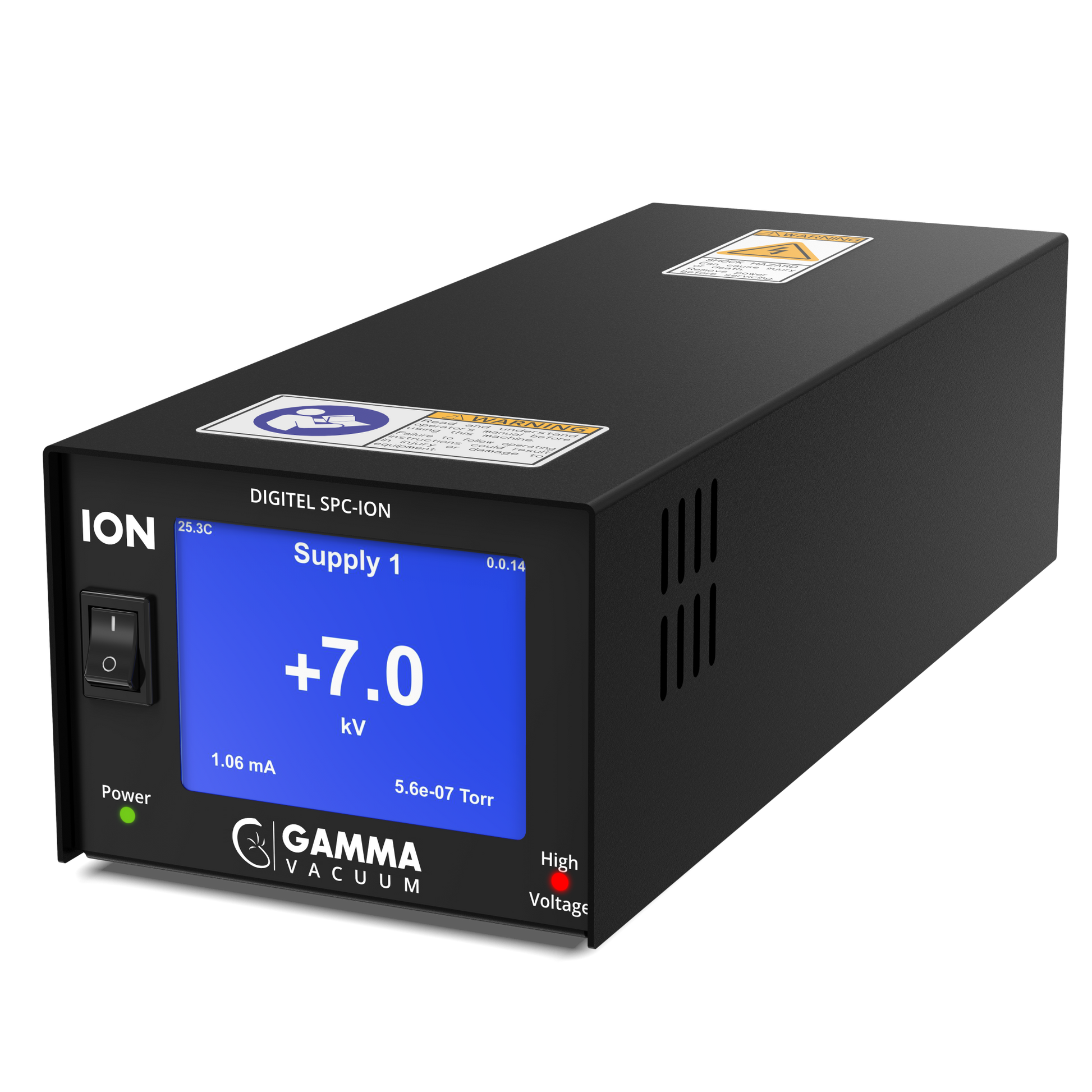

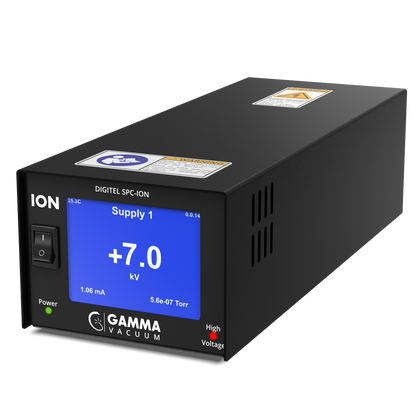

| Type | 3.5" LCD color touchscreen (320 × 240 pixel) |
| Readout | Pressure, current, voltage, controller temperature and programmable options |
| Analog outputs | |
| Voltage | Fixed, 1 V per 1000 V |
| Current / pressure | User programmable, see manual |
| Setpoint | Single setpoint drives relay and TTL |
| Communication | Ethernet, Serial: 232, 485 (FD/HD) |
| Conformity to norms | EN 61326-1, EN 61010-1, FCC Part 15 |
| Weight, kg (lbs) | Universal 100–240 VAC: 2.2 (4.9) 24 V: 1.8 (4.0) |
| Size | 2U high, 1/4-rack wide, 313 mm (12.3 in.) deep |
| Additional features | SAFECONN, Auto HV Restart, High-Pot, Automatic high-voltage adjustment, Jumpstart |
Ordering information
| High voltage | Input connections | Output connections | Polarity | Part number |
|---|---|---|---|---|

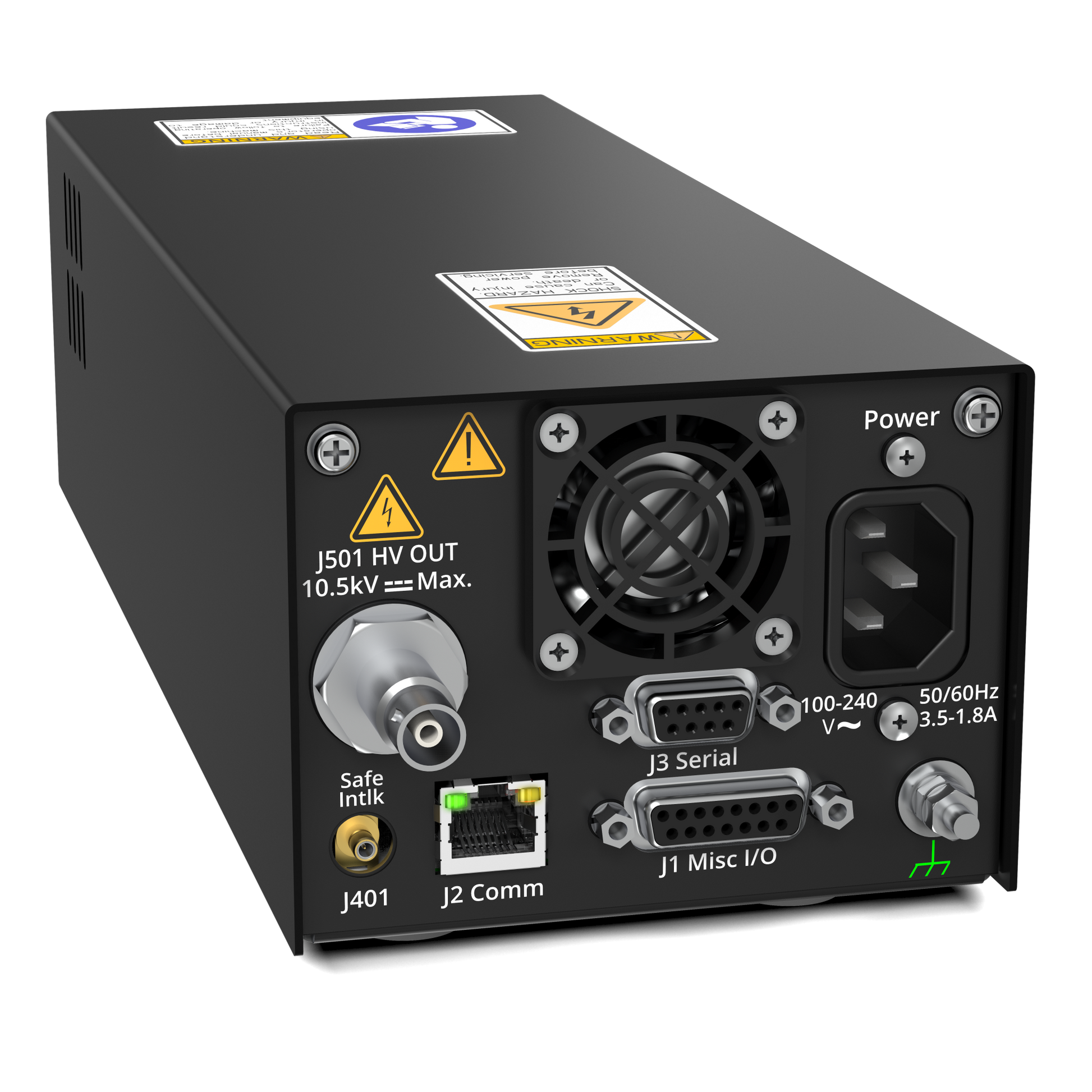

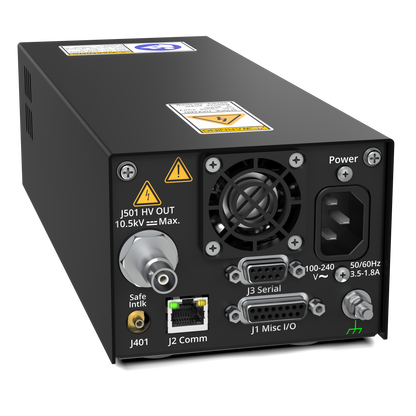

| 1× HV section | Universal (100 – 240 VAC) | Single 10 kV SHV + SMB SAFECONN | positive | SPCIPSUV |
| negative | SPCINSUV | |||

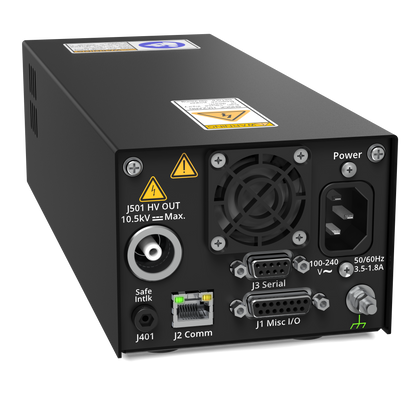

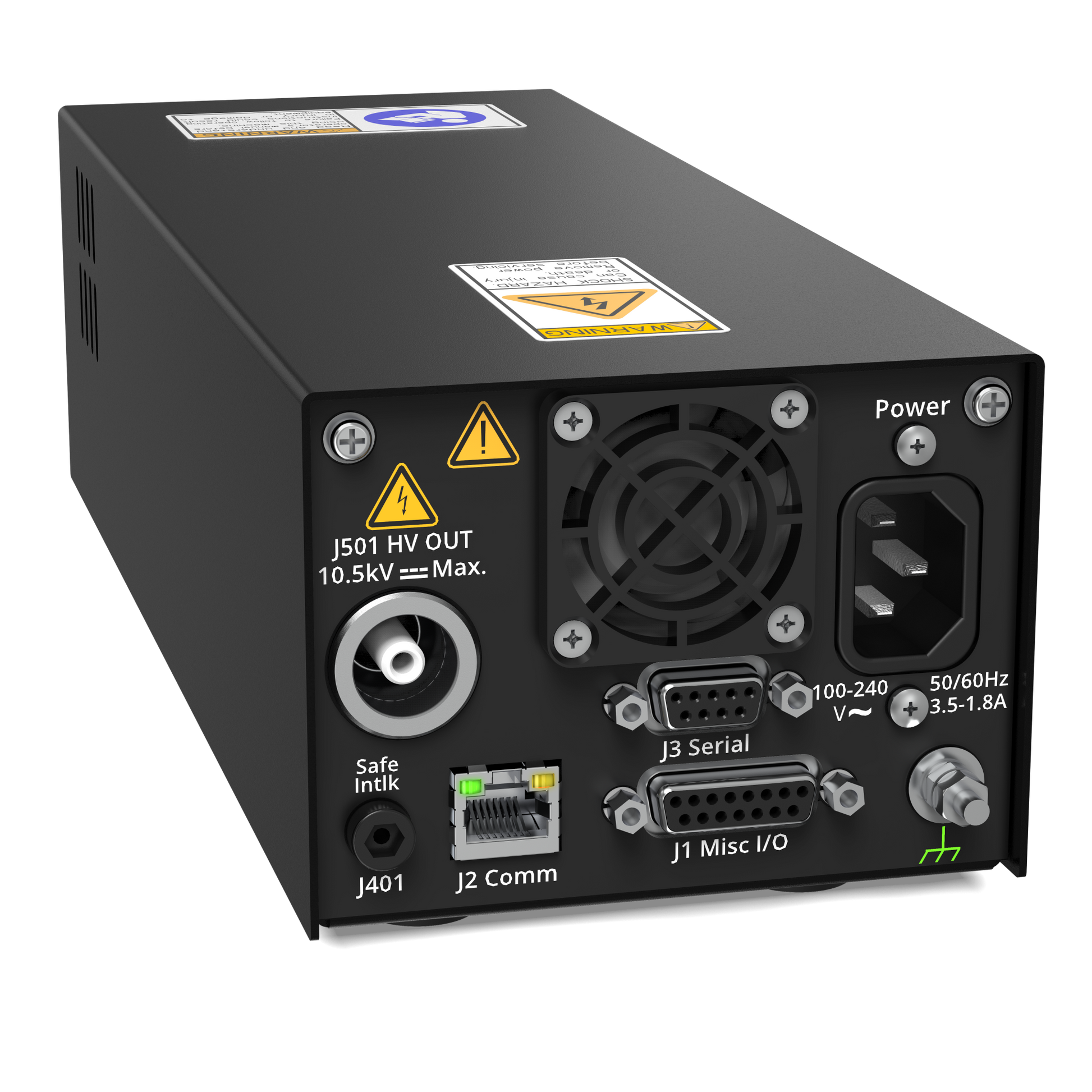

| Single Fischer + Banana SAFECONN | positive | SPCIPFUV | ||
| negative | SPCINFUV | |||

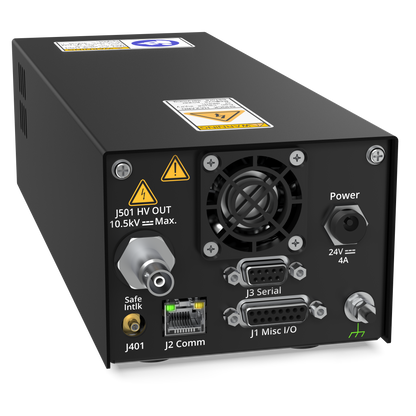

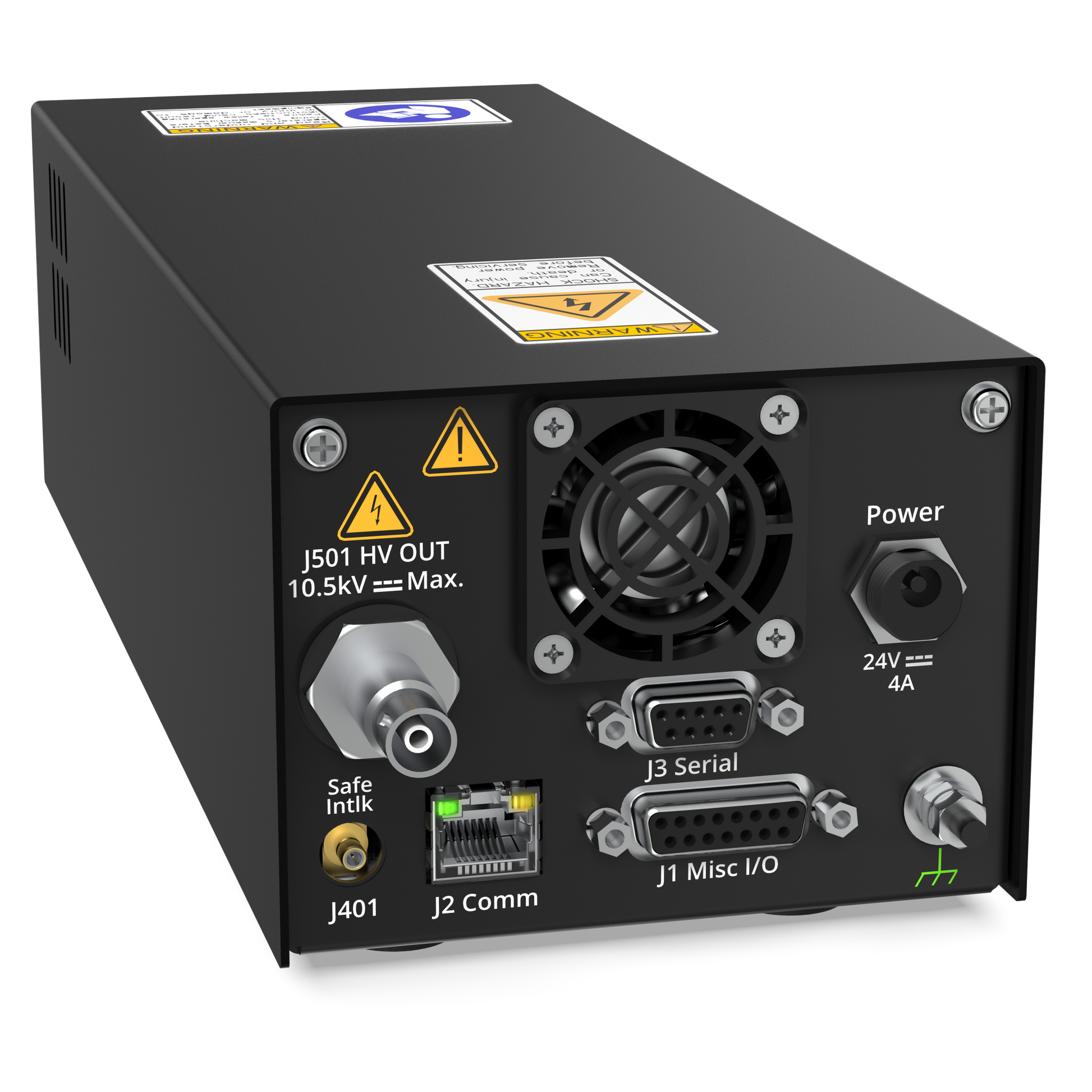

| 24 VDC | Single 10 kV SHV + SMB SAFECONN | positive | SPCIPS24 | |
| negative | SPCINS24 | |||

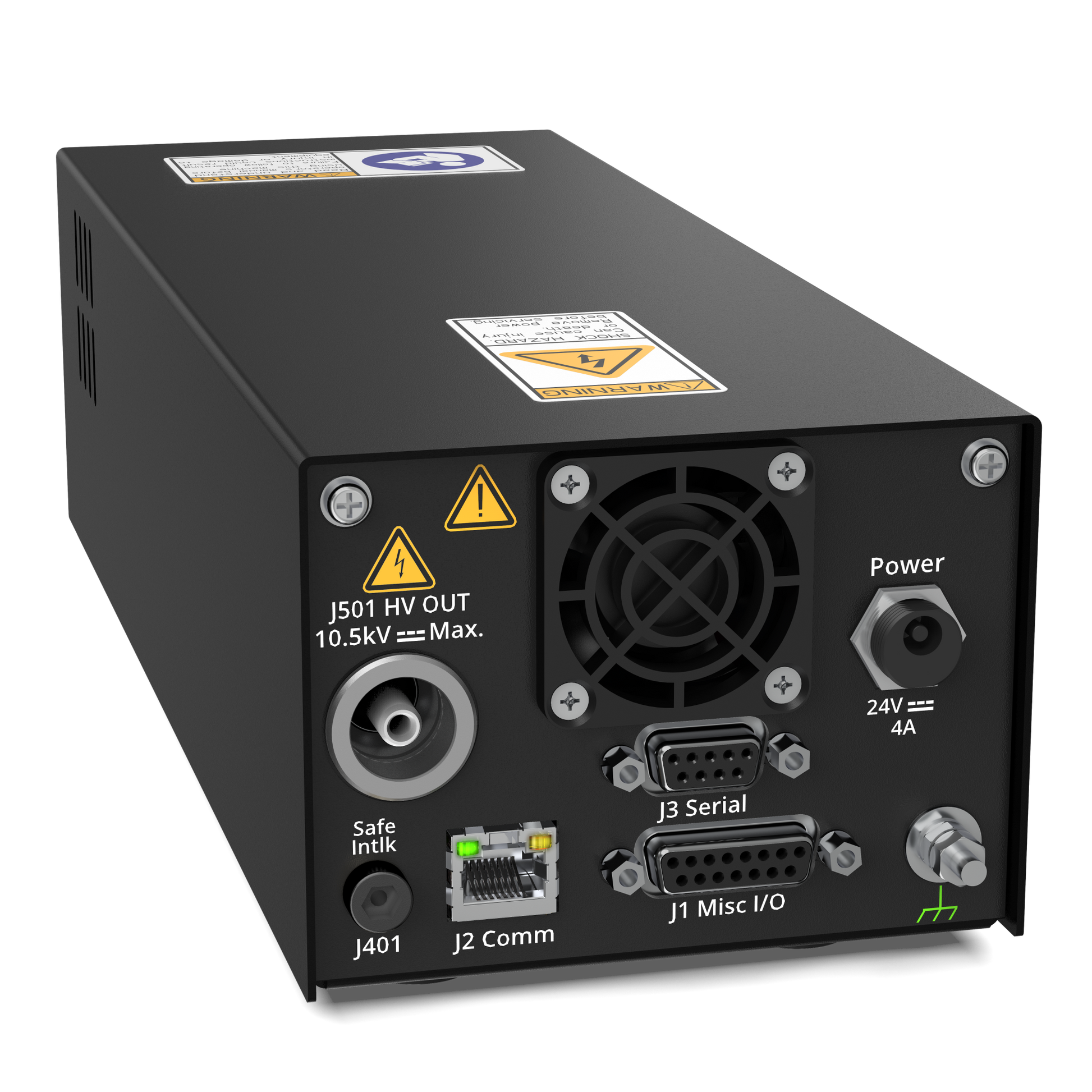

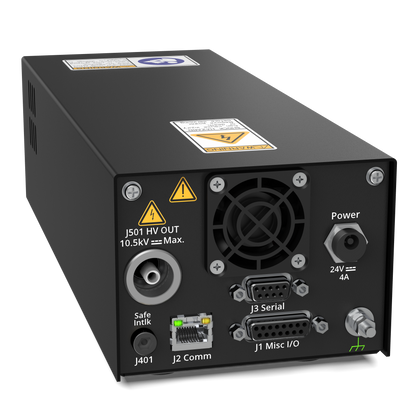

| Single Fischer + Banana SAFECONN | positive | SPCIPF24 | ||
| negative | SPCINF24 |
Accessories
| Product description | Part number |
|---|---|
| Power supply, 24 VDC, 3.75 A, 90 W, 1 m, SPCe | G392291 |
| 2 m electrical supply cable, US 110 V | G380068 |
| 2 m electrical supply cable, US 220 V, IEC320 | G380072 |
| 2 m electrical supply cable, EC 230 V | G380069 |
| 2 m electrical supply cable, UK 240, BS1363 | G380071 |
| 2 m electrical supply cable, AU 230 | G380098 |
| 2 m cable, bare 24 V wire | G381016 |
Important: Downloadable drawings are for reference only! Catalog products may be changed without further notice. If you need drawings for system design, please contact Gamma Vacuum.
